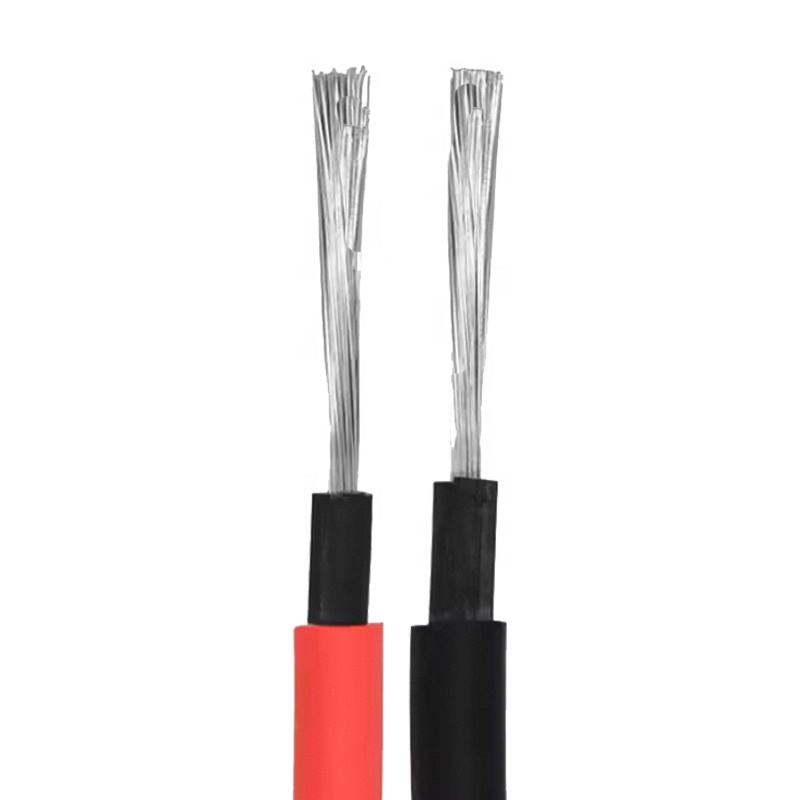

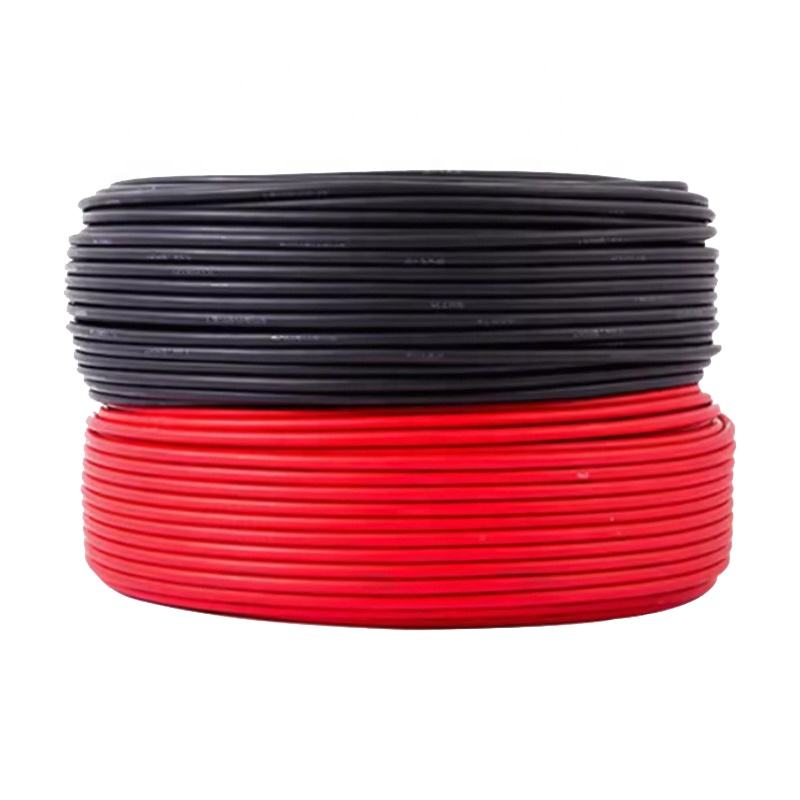

Solar Panel photovoltaic DC cable
PRODUCT DESCRIPTION

Industry-specific attributes

Insulation Material
Xlpe


Application
Solar Power Station/Solar power System


Conductor Material
Tinned Copper


Jacket
PVC

PV1-F、H1Z2Z2-K
Corssilinked polyolefin insulation crosslinked polyolefin sheath solar photovoltaic cable
Nominal crosssectional area mm2
(tinnedcopper)conductor type
Calculatedconductor overalldiameter(mm)
Calculated cableoverall diameter(mm)
Calculated cableweight(kg/km)
Max.DC resistanceat 20℃(Ω/km)
1.5
5
1.6
5.1
41
13.7
2.5
5
2
5.5
53
8.21
4
5
2.6
6.2
73
5.09
6
5
3.2
6.8
96
3.39
10
5
4.2
7.9
149
1.95
16
5
5.5
9.2
208
1.24
25
5
7.2
11.2
310
0.795
35
5
8.2
12.2
411
0.565




FAQ

Q1: Are you a factory or trade company?
A: We have our own factory, which located in Hangzhou, We can provide OEM service including custom size and logo design.
Q2: How about quality control of your company?
A: We pay great attention on quality control from the beginning to the end,and our QC department will inspect all goods strictly before shipment delivery.Third party inspection is welcome.
Q3: When is your delivery time?
A: Within 25 days after ordering.
Q4:Is it all right to make customer brand name?
A: Yes, OEM is welcome if the quantity above the MOQ.
Q5: Where is your loading port?
A: Shanghai or Ningbo, China.
Q6:Do you supply free samples?
A:Yes, free stock samples will be available, but shipping cost will be covered by customers.Please contact us to check shipping cost according to customer's address.
