CAT6

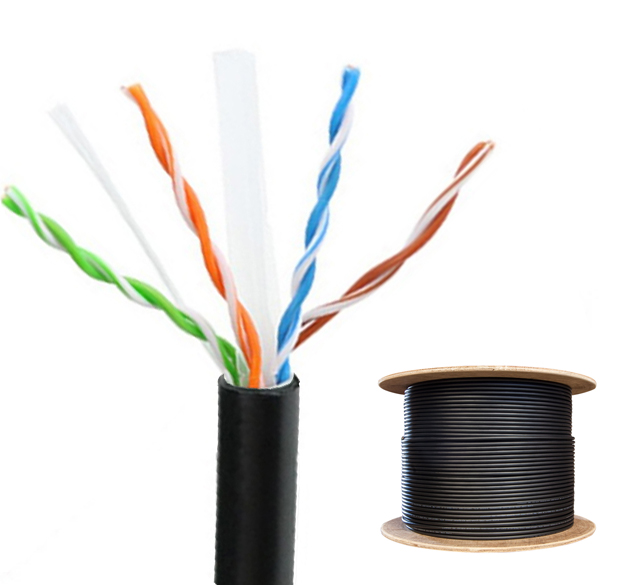

UTP CAT6 Outdoor Cable

PRODUCT DESCRIPTION

Construction			Attenuation	RL	Next	PS Next
Conductor	23AWG Copper 0.56±0.02mm	MHZ	dB/100m	dB	dB	dB/100m
Insulation	HDPE 1.04±0.06mm		min	min	min	min
Cores/Pairs	8/4	1	2.0	23	74.3	71.8
Sheath	6.1±0.1mm PE	4	3.8	23	65.3	61.2
		10	6.0	23	59.3	53
Mechanical Properties		16	7.6	23	56.2	48.4
Elongation	Min. 300%	20	8.5	23	54.8	46.5
Temperature Range	-20 up to +75℃	31.2	10.7	23	51.9	41.3
Tensile strength	Min.1.68Kg/mm2	62.5	15.1	23	47.4	31.5
		100	19.1	23	44.3	24.1
Electrical Properties (at 20℃)℃)		125	21.3	21	42.8	20.5
Conductor Resistance	Max.9.38Ω/100m	155.5	23.8	21	41.4	16.6
Resistance Unbalance	Max.2%	175	25.3	21	40.7	13.9
Insulation Resistance	Max.150Ω/Km	200	27.0	21	39.8	10.8
Mutual Capacitance	Max.5600pF/100m	250	32.6	19	38.3	5
Capacitance Unbalance	Max.330pF/100m	300	35.7		37.1
Impedance	100±15	400	41.2		35.3
Spark Test	2000v	450	42		34.5
Velocity of Propagation	67%

FAQ

Q1： Are you a factory or trade company?
A： We have our own factory, which located in Hangzhou, We can provide OEM service including custom size and logo design.
Q2： How about quality control of your company?
A： We pay great attention on quality control from the beginning to the end,and our QC department will inspect all goods strictly before shipment delivery.Third party inspection is welcome.
Q3： When is your delivery time?
A： Within 25 days after ordering.
Q4：Is it all right to make customer brand name?
A： Yes, OEM is welcome if the quantity above the MOQ.
Q5： Where is your loading port?
A： Shanghai or Ningbo, China.
Q6：Do you supply free samples?
A：Yes, free stock samples will be available, but shipping cost will be covered by customers.Please contact us to check shipping cost according to customer's address.
